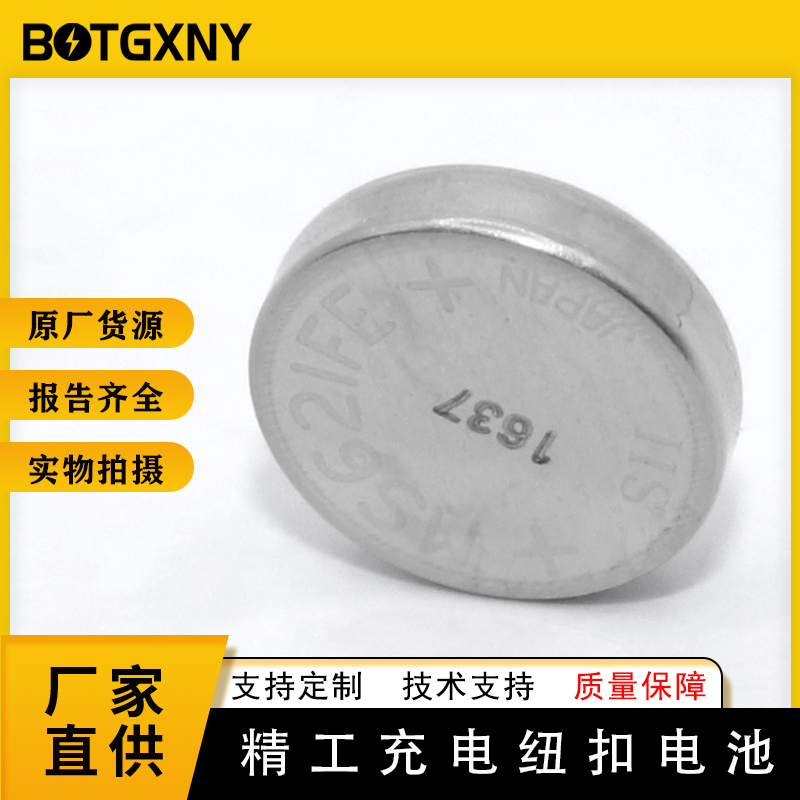

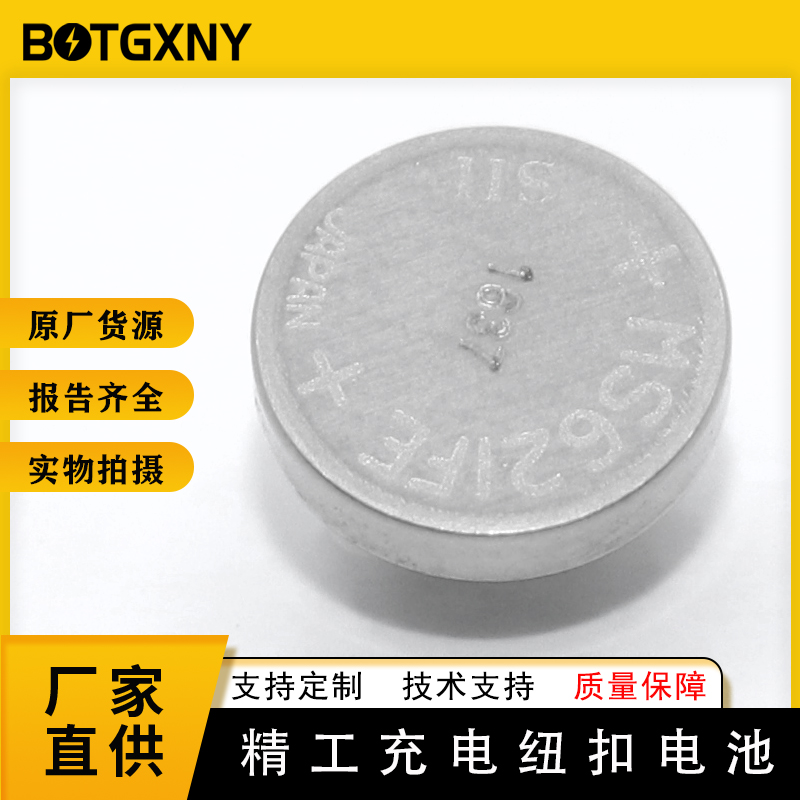

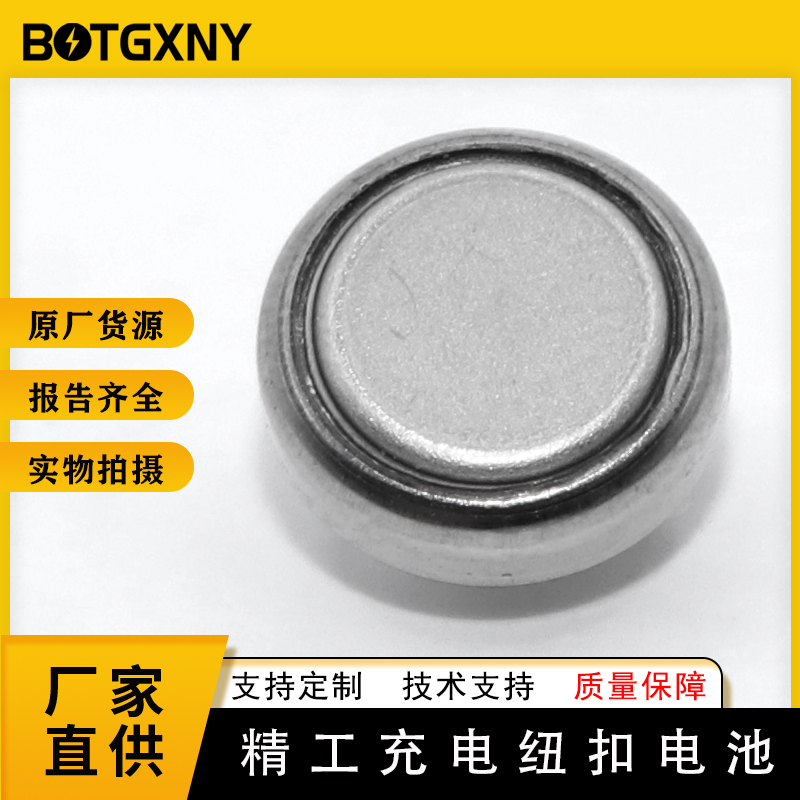

精工MS621FE无脚裸电池可充电时钟IC记录仪后备电池代替ML621S/DN
面议
产品详情
SPECIFICATIONS
| Type | MS621FE |
|---|---|
| Nominal Voltage(V) | 3 |
| Charge Voltage (Standard Charge Voltage)(V) | 2.8 to 3.3(3.1) |
| Nominal Capacity(mAh) | 5.5 |
| Internal Impedance(Ω) | 80 |
| Standard Discharge Current(mA) | 0.015 |
| Maximum Discharge Current (Continuous)(mA) | 0.25 |
| Cycle Life (Time)100% D.O.D(Depth of Discharge) | 100 |
| Cycle Life (Time)20% D.O.D(Depth of Discharge) | 1000 |
| Size Diameter(mm) | 6.8 |
| Size Height(mm) | 2.1 |
| Weight(g) | 0.23 |
CHARACTERISTICS
Click to enlarge.

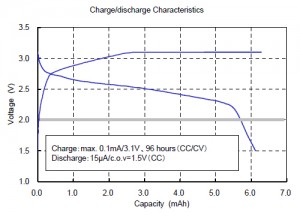

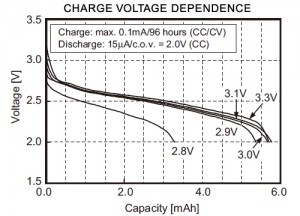

 Charge Voltage Dependence |  Charge / Discharge Characteristics |

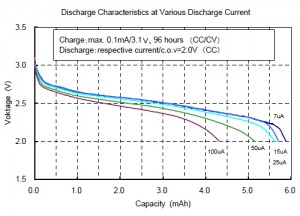

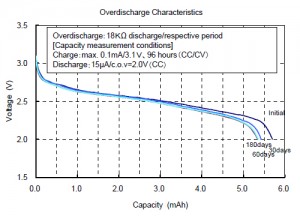

 Discharge Characteristics at Various Discharge Current |  Overdischarge Characteristics |

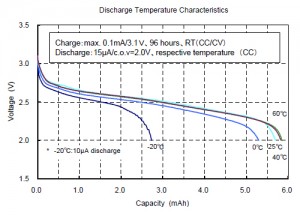

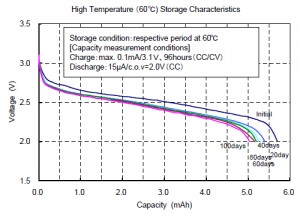

 Discharge Temperature Characteristics |  High Temperature (60℃) Storage Characteristics |

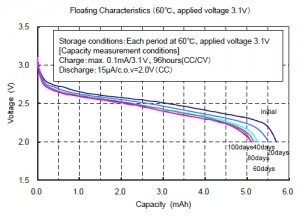

 Floating Characteristics (60℃, applied voltage 3.1V) |
